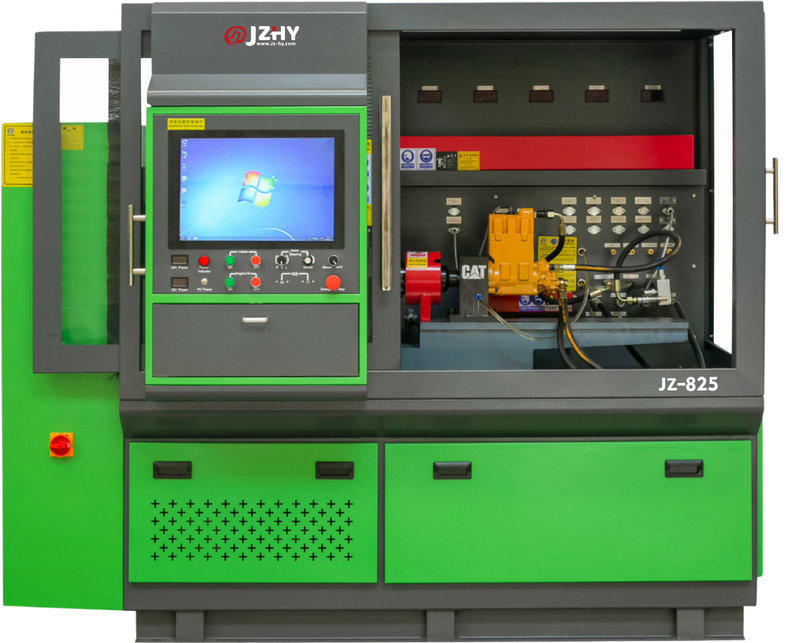

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

Brand Name : JZHY

Model Number : JZ-825

Certification : CE / ISO

Place of Origin : China

MOQ : 1

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100sets per Month

Delivery Time : 7-10 Days

Packaging Details : Wood Density Board

Support : OEM/ODM

Contact Now

JZ-825 Integrated Injector CAT HEUI PIEZO SOLENOID 320D Pump Common Rail Test Bench



Standard Functions:





  • Test piezo injector
  • Test solenoid valve injector
  • Test HEUI common rail injector
  • Test pump nozzle & unit pump
  • Test high-pressure common rail pump
  •  320D pump
  • Test actuator pump
  • Test GDi injector



Assist Functions:



  • Test resistance & inductance
  • Flow sensor linear calibration
  • Oil nozzle opening pressure flow
  • Fuel tank oil level lower limit alarm
  • High pressure filter clogging reminder
  • Electronic measuring system



Optional Functions:



  • Test 4-pin injector
  • Testing X15, Q60 HPI
  • 9.3 HP5 HP6 HP7 pump
  • Testing HPI actuators
  • 4-plunger common rail pump
  • 4-plunger common rail pump



Hardware Configuration:



  • Gear flow sensor
  • Dual DRV configuration
  • 4 flow sensors
  • Common rail pipe with filter function
  • Injection drive and system voltage monitor

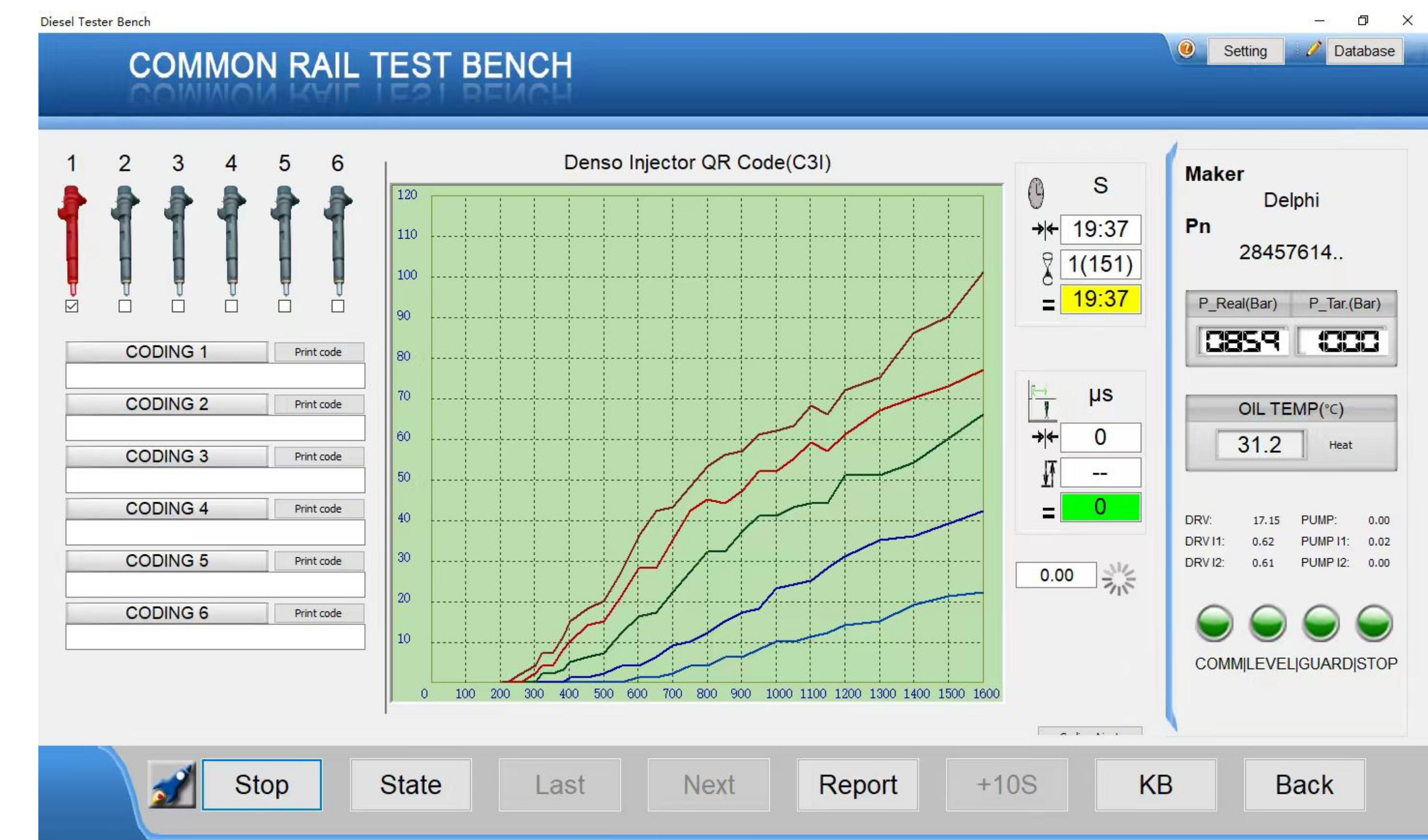

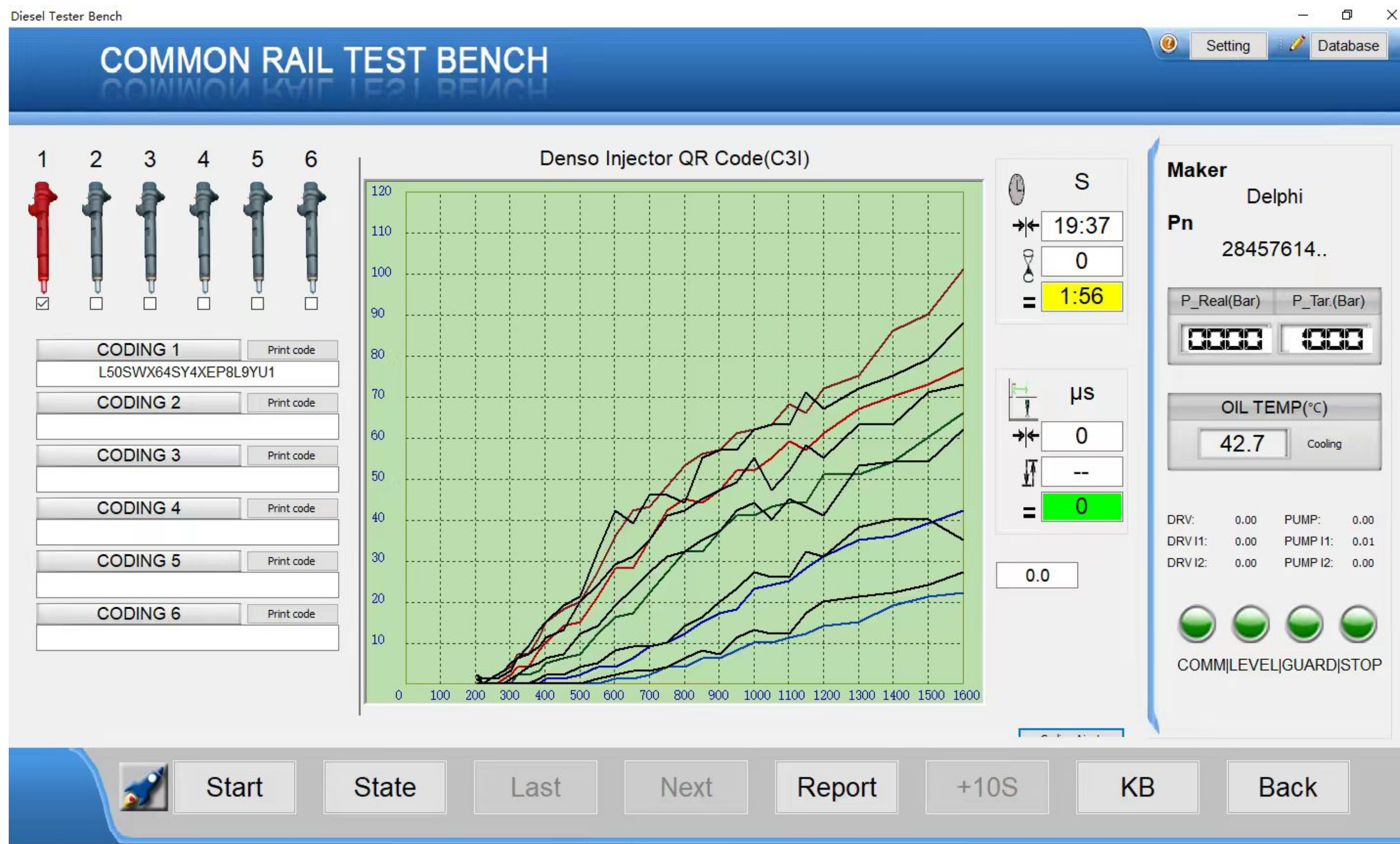

Generate Correction Code:



  • Generate 6,7,8,9,10-digit IQA code
  • Generate 16,24,30-digit QR code
  • Generate C2i,C3i correction code
  • Generate piezo IMA,ISA code
  • Generate VDO-IIC code
  • Generate correction code

Technical Parameters
   Model Number    JZ-825
   Color    Green
   Frequency    50Hz / 60Hz
   Motor Height    125 MM
   Main Output    22 KW
   Speed    0～4000 RPM
   Speed Control Mode    Frequency Converter
   Diesel Motor Output    5.5 KW
   Engine Motor Output    4 KW
   Diesel Oil Supply Output    0.75 KW
   Engine Oil Supply Output    0.55 KW
   Oil Tank Cooling Output    105 Watts
   Power    380V AC 3-Phase-4-Wire
   Cooling Systerm    Air Conditioning (1.5 P)
   Diesel Tank Volume    40L Filtration Accuracy:3μm
   Engine Oil Tank Volume    20L Filtration Accuracy:5μm
   Fuel Temperature    40℃ ± 2℃
   Heating System    Air Conditioning
   Nozzel / Pump Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008～2L /min
   Control Return Voltage    DC 12V / DC 24V
   Max Common Rail Pressure    2700 Bar
   Rail Pressure Testing Accuracy    ±5 Bar
   Max Medium Common Rail Pressure    250 Bar
   Diesel Oil Supply Pressure    0～2.5 Mpa
   Oil Supply Pressure    0～2.5 Mpa
   Injection Frequency    400-6000 n/M
   Pulse Width    100-3000 μs
   Machine Dimension    2310*1400*1830MM
   Packing Dimension    2510*1600*2030MM
   Net Weight    1200 KG
   Gross Weight    1440 KG

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench

JZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test BenchJZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test BenchJZ-825 Diesel Integrated Common Rail EUI EUP HEUI Piezo Solenoid Injector and Pump Test Bench
