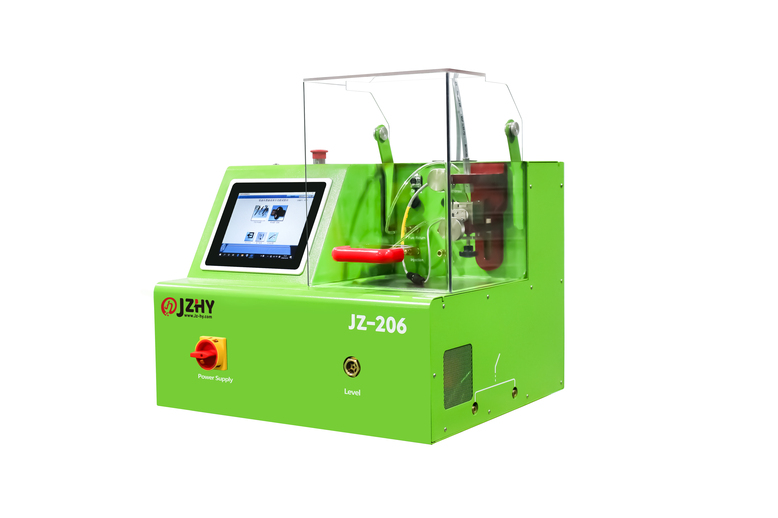

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

Brand Name : JZHY

Model Number : JZ-206

Certification : CE / ISO

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100sets per Month

Delivery Time : 7-10 Days

Packaging Details : Wood Density Board

Support : OEM/ODM

Contact Now

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

Standard Functions:

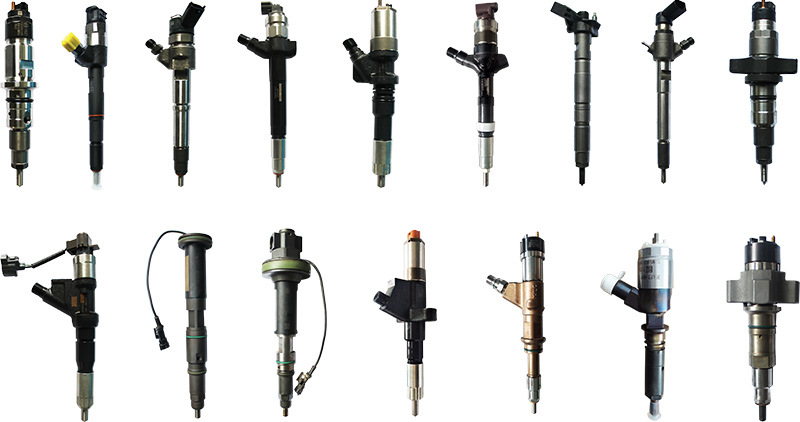

  • Test common rail injectors
  • Test the piezo fuel injectors
  • IQA code generation
  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control

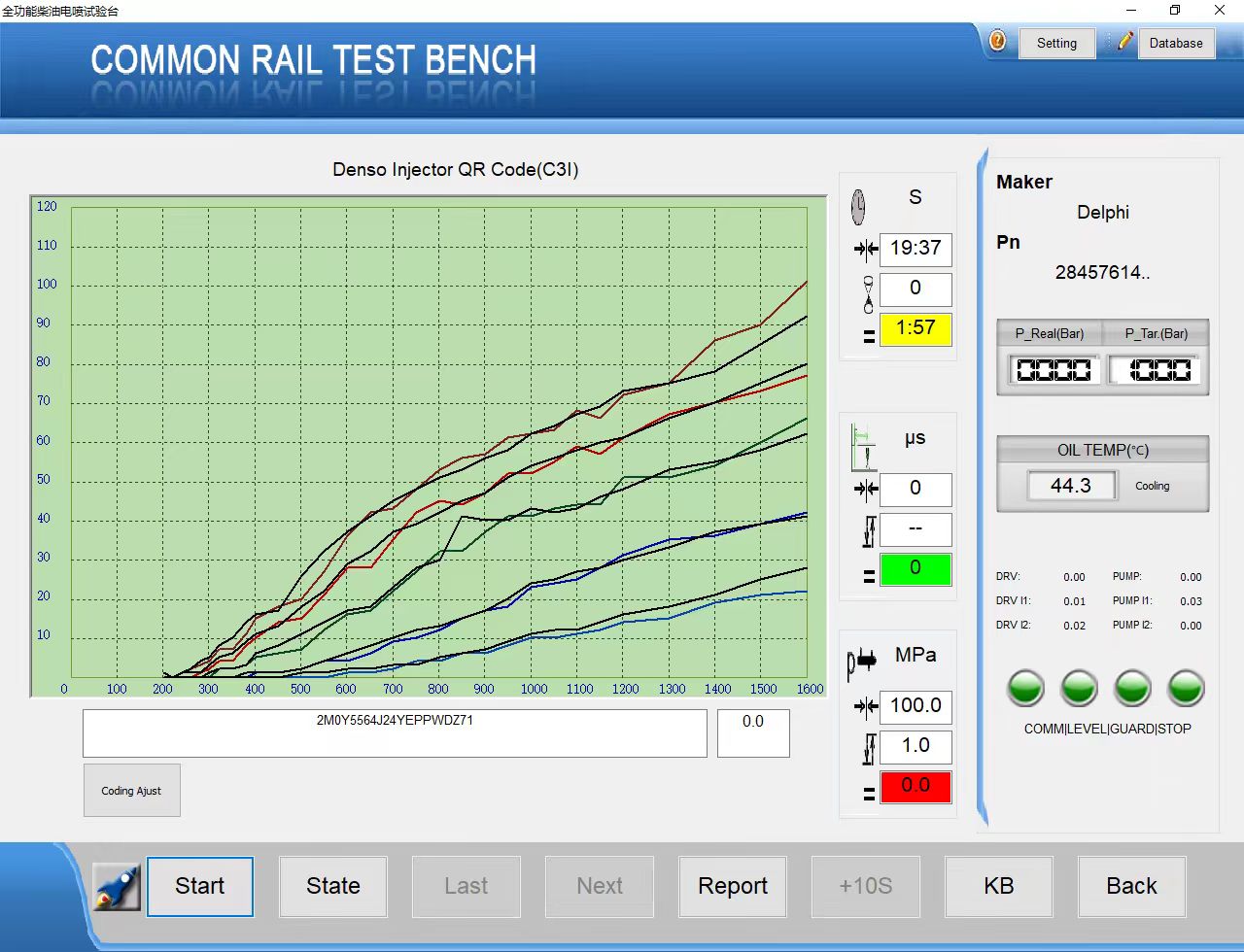

  • Real-time display injection/return curves


Optional Functions:


  • Test the 4-pin injector
  • Test smart injector
  • injector QR code
  • VDO-IIC coding
  • C2i, C3i coding
  • piezo IMA, ISA coding



Technical Parameters
   Output    2.3 KW
   Speed    0 - 2500 RPM
   Speed Control Mode    Frequency Converter
   Power    Single Phase 220V 50/60HZ
   Cooling System    Air Cooling (2 Fan Radiators)
   Nozzle Sensor    Gear Flow Sensor
   Rail Pressure    0-2700 Bar
   Rail Pressure Precision    ±5 Bar
   Sensor Range    0.008-2L/min
   Oil Tank Volume    8L
   Fuel Temperature    40±2°C
   Filter Precision    < 5µm
   Noise level    < 85 dB
   ECU Internal Boost    0-200 VDC (Max)
   Machine Dimension    690*690*750 mm
   Packing Dimension    750*790*820 mm
   Net Weight    113kg
   Gross Weight    144KG


JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test BenchJZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench
JZ-206 Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench
