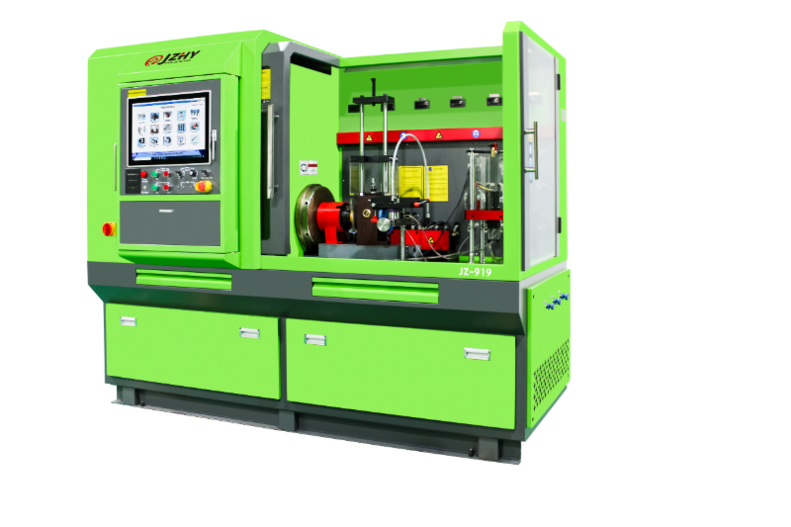

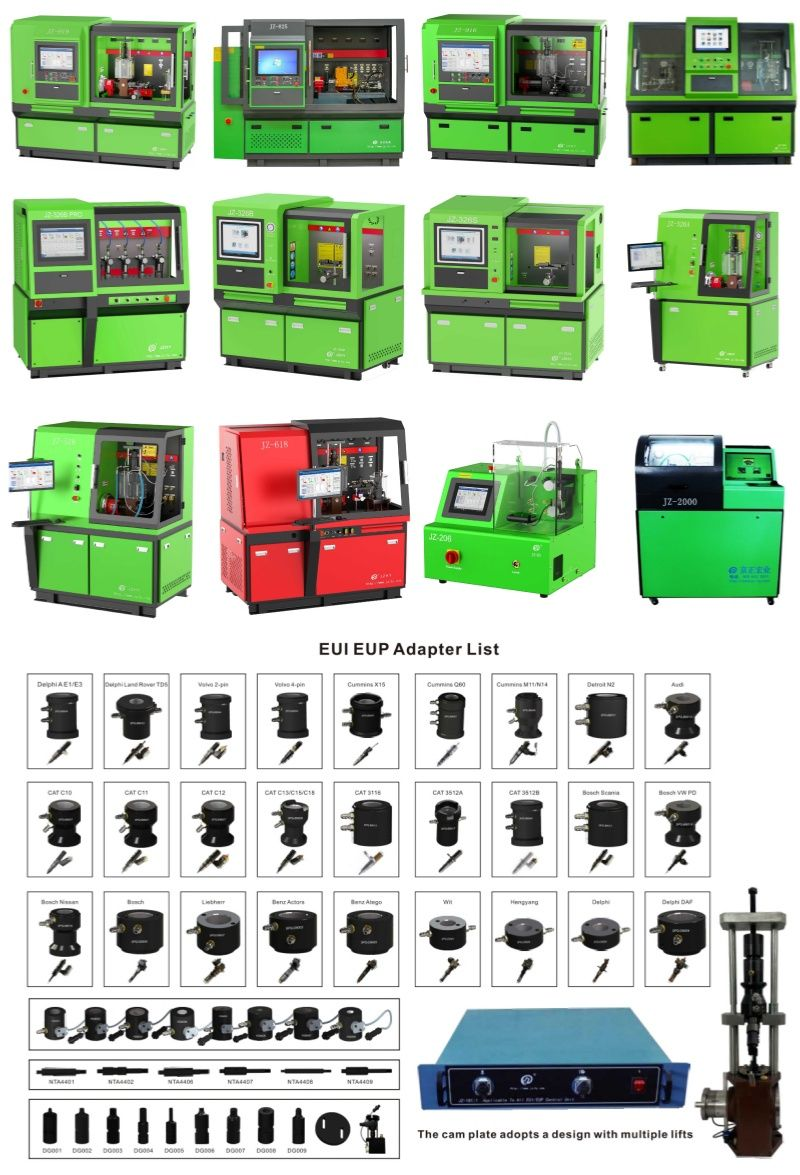

JZ-919 Common Rail Integrated Diesel Injector Test Bench CAT HEUI EUI EUP

JZ-919 Common Rail Integrated Diesel Injector Test Bench CAT HEUI EUI EUP



Standard Functions:



• Test actuator pump
• Test piezo injector
• Test solenoid valve injector

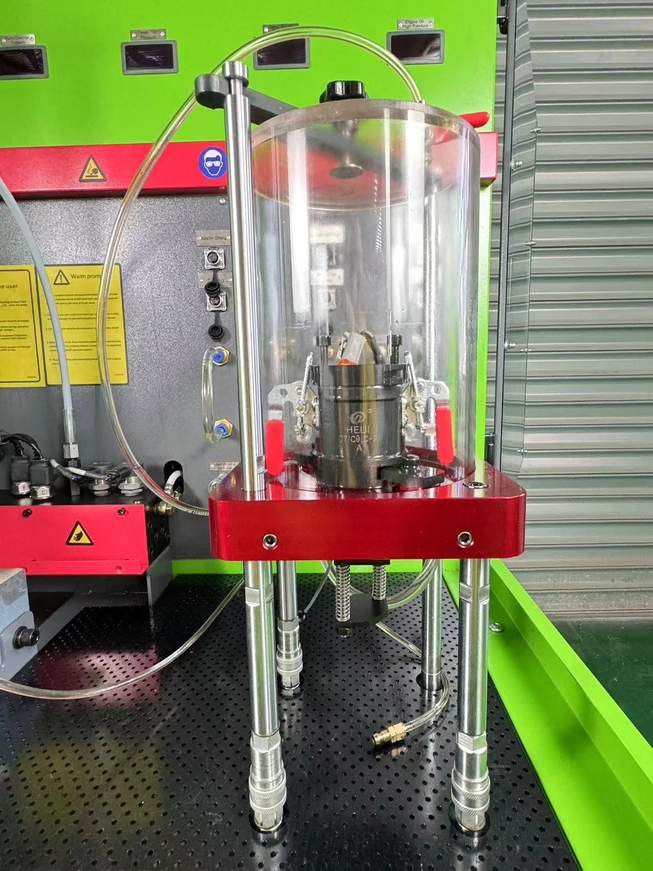

• Test HEUI common rail injector

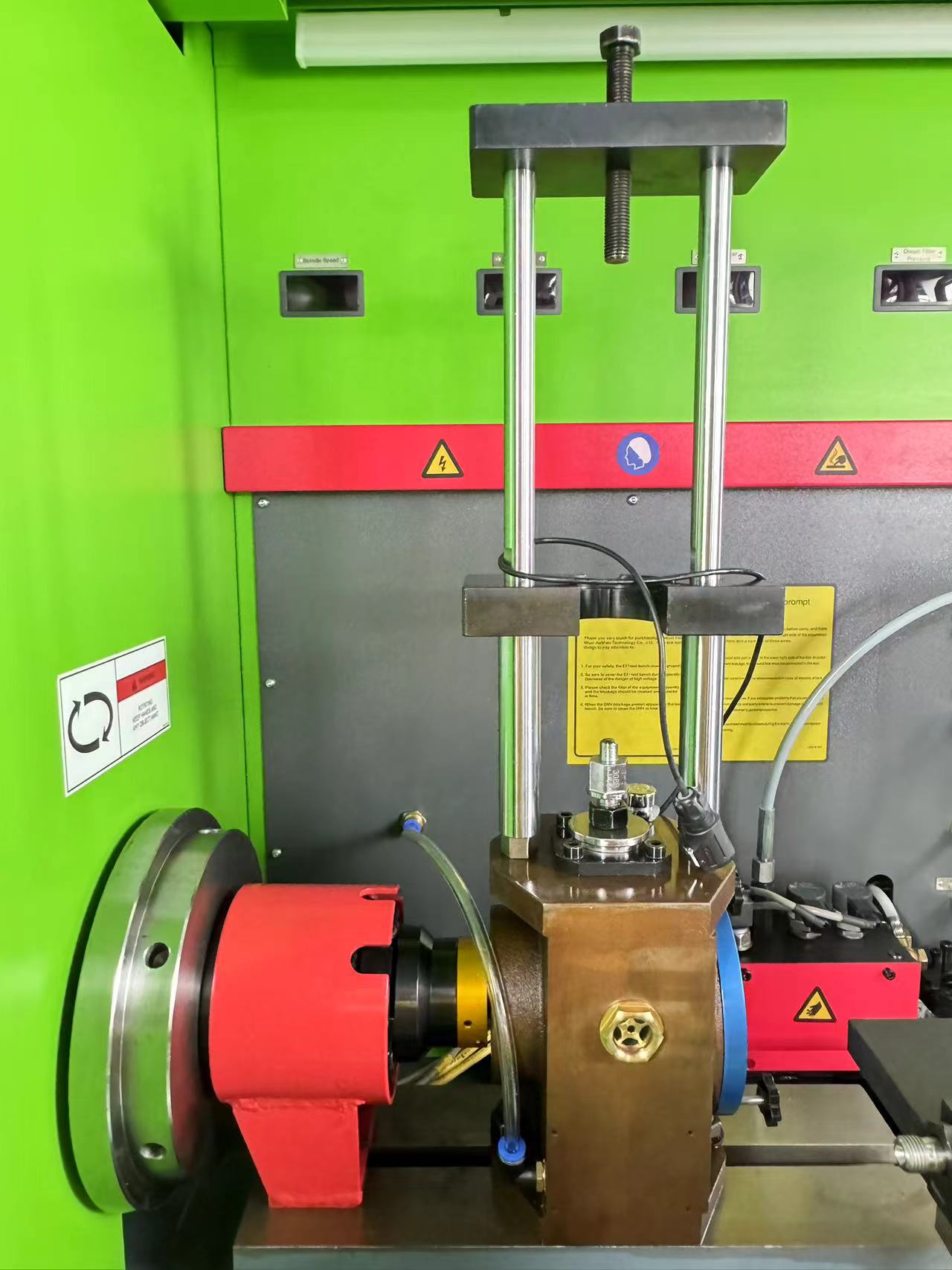

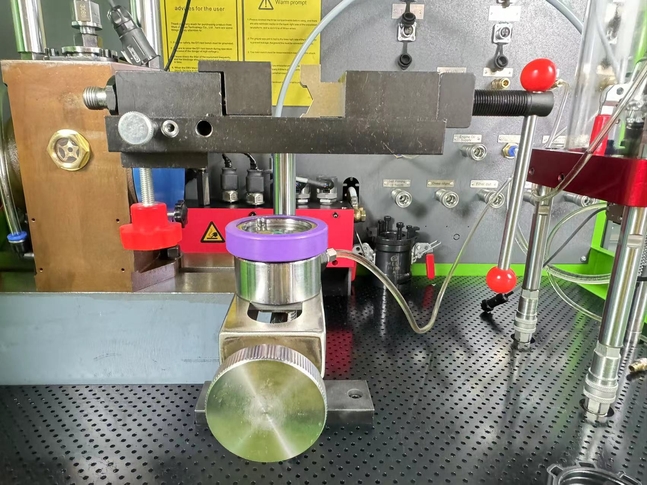

• Test pump nozzle & unit pump
• Test high-pressure common rail pump
• 320D pump

​

Assist Functions:



• Electronic measuring system
• Hand testing pump
• Door controller
• Flow sensor linear calibration
• Oil nozzle opening pressure flow
• Fuel tank oil level lower limit alarm
• High pressure filter clogging reminder
• Pump nozzle working pressure testing
• Common rail pump plunger pressure curve

​

Optional Functions:



• Test 4-pin injector
• Test X15, Q60 HPI
• 9.3, HP5 HP6 HP7 pump
• Testing HPI actuators
• Test 4-6 injectors at the same time
• 4-plunger common rail pump
• 4-plunger common rail pump

​

Hardware Configuration:



• Gear flow sensor
• Dual ORV configuration
• 4 flow sensors
• Common rail pipe with filter function
• Injection drive and system voltage monitor
• Built-in oil actuated pump & high pressure common rail pump
• Air conditioning cooling system

​

Generate Correction Code:



• Generate 6,7,8,9,10-digit IQA code
• Generate 16,24,30-digit QR code
• Generate C2i,C3i correction code
• Generate piezo IMA,ISA code
• Generate VDO-IIC code
• Generate correction code







Technical Parameters
Model Number				JZ-919
Color				Green
Frequency				50Hz / 60Hz
Motor Height				125 MM
Main Output				22 KW
Speed				0～4000 RPM
Speed Control Mode				Frequency Converter
Diesel Motor Output				5.5 KW
Engine Motor Output				4 KW
Diesel Oil Supply Output				0.75 KW
Engine Oil Supply Output				0.55 KW
Oil Tank Cooling Output				105 Watts
Power				380V AC 3-Phase-4-Wire
Cooling Systerm				Air Conditioning (1P)
Diesel Tank Volume				40L Filtration Accuracy:3μm
Engine Oil Tank Volume				20L Filtration Accuracy:5μm
Fuel Temperature				40℃ ± 2℃
Heating System				Air Conditioning
Nozzel / Pump Flow Sensor				Gear Flow Sensor
Flow Metering Unit				0.008～2L /min
Control Return Voltage				DC 12V / DC 24V
Max Common Rail Pressure				2700 Bar
Rail Pressure Testing Accuracy				±5 Bar
Max Medium Common Rail Pressure				250 Bar
Diesel Oil Supply Pressure				0～2.5 Mpa
Oil Supply Pressure				0～2.5 Mpa
Injection Frequency				400-6000 n/M
Pulse Width				100-3000 μs
Machine Dimension				2280*1180*1800 MM
Packing Dimension				2440*1350*1980 MM
Net Weight				1200 KG
Gross Weight				1440 KG
