JZ-618 Intergrated Common Rail Injector EUI EUP HEUI 320D Actuator Pump Test Bench

JZ-618 Injector Actuator Pump Common Rail 4 Pin CAT Integrated Machine Test Bench



Standard Functions:



• Test actuator pump
• Test piezo injector
• Test solenoid valve injector
• Test HEUI common rail injector
• Test pump nozzle & unit pump
• Test high-pressure common rail pump​

​

Assist Functions:



• Test resistance & inductance
• Flow sensor linear calibration
• Oil nozzle opening pressure flow
• Fuel tank oil level lower limit alarm
• High pressure filter clogging reminder

​

Optional Functions:



• Test smart injector
• Test 4-pin injector
• Testing X15, Q60 HPI
• MTU
• HP5 HP6 HP7 pump
• 9.3
• Testing HPI actuators
• 4-plunger common rail pump

​

Hardware Configuration:



• Gear flow sensor
• Dual ORV configuration
• 4 flow sensor metering units
• Common rail pipe with filter function
• Injection drive and system voltage monitor
• Built-in oil actuated pump & high pressure common rail pump

​

Generate Correction Code:



• Generate 6,7,8,9,10-digit IQA code
• Generate 16,24,30-digit QR code
• Generate C2i,C3i correction code
• Generate piezo IMA,ISA code
• Generate VDO-IIC code
• Generate correction code

​





Technical Parameters
Model Number				JZ-618
Color				Green/Red
Frequency				50Hz / 60Hz
Motor Height				125 MM
Main Output				15 KW
Speed				0～3500 RPM
Speed Control Mode				Frequency Converter
Diesel Motor Output				5.5 KW
Engine Motor Output				4 KW
Diesel Oil Supply Output				0.75 KW
Oil Tank Cooling Output				105 Watts
Power				380V AC 3-Phase-4-Wire
Cooling Systerm				Air Conditioning (1P)
Diesel Tank Volume				40L Filtration Accuracy:3μm
Engine Oil Tank Volume				20L Filtration Accuracy:5μm
Fuel Temperature				40℃ ± 2℃
Heating System				Air Conditioning
Nozzel / Pump Flow Sensor				Gear Flow Sensor
Flow Metering Unit				0.008～2L /min
Control Return Voltage				DC 12V / DC 24V
Max Common Rail Pressure				0-2700 Bar
Rail Pressure Testing Accuracy				±5 Bar
Max Medium Common Rail Pressure				250 Bar
Diesel Oil Supply Pressure				0～2.5 Mpa
Oil Supply Pressure				0～2.5 Mpa
Injection Frequency				400-6000 n/M
Pulse Width				100-3000 μs
Machine Dimension				1880*1020*1750MM
Packing Dimension				1980*1160*1930MM
Net Weight				1020KG
Gross Weight				1115KG











Product Tags:

JZ-618 common rail test bench



4 Pin common rail test bench



CAT common rail injector test bench

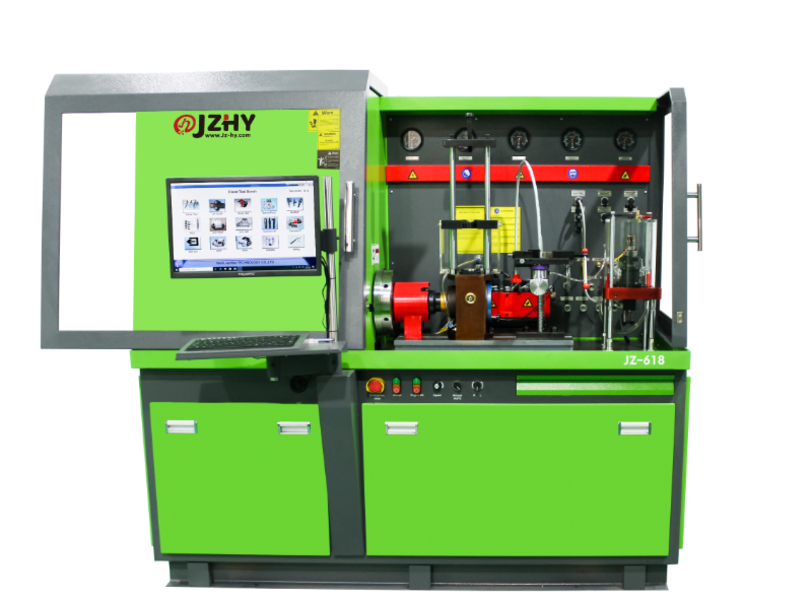

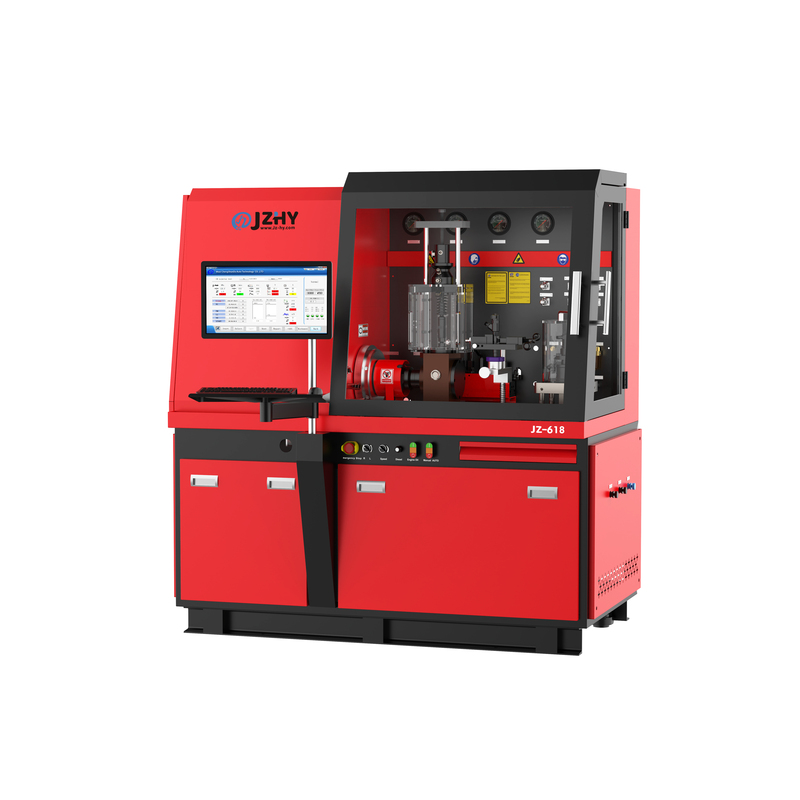

JZ-618 Intergrated Common Rail Injector EUI EUP HEUI 320D Actuator Pump Test Bench Images
