7.5 Kw Motor Power EUI EUP Test Bench 0-2700 Bar Rail Pressure and 40L Diesel Tank Volume for Electronic Unit Injector Testing

MOQ : 1

Price : 6400

Model NO. : JZ-326A

Motor Power : 7.5 Kw

Power Supply : 3-Phase 4-Wire 380V 50/60Hz

Rail Pressure Precision : 5 Bar

Filter Precision : < 5 Um

Diesel Tank Volume : 40 L

Fuel Temperature : 38-42 'c

Net Weight : 500kg

Metering Way : Flow Sensor

Dimensions : 1580*1100*1900 mm

Speed Range : 0 -4000 RPM

Rail Pressure : 0-2700 Bar

Nozzle Sensor : Gear Flow Sensor : 2 pcs

Machine Dimension : 1280*990*1700 mm

Gross Weight : 530KG

Contact Now

7.5 Kw Motor Power EUI EUP Test Bench 0-2700 Bar Rail Pressure and 40L Diesel Tank Volume for Electronic Unit Injector Testing

The JZ-326A EUI EUP test bench features full automatic control for convenient repair and testing of Euro-3 and Euro-4 injectors. This advanced testing equipment can evaluate thousands of injectors while providing comprehensive experimental data.

Standard Functions

Test unit injectors (EUI)
Test unit pumps (EUP)

Optional Functions

Test X15, Q60 HPI systems

Test Range

Unit injectors and unit pumps

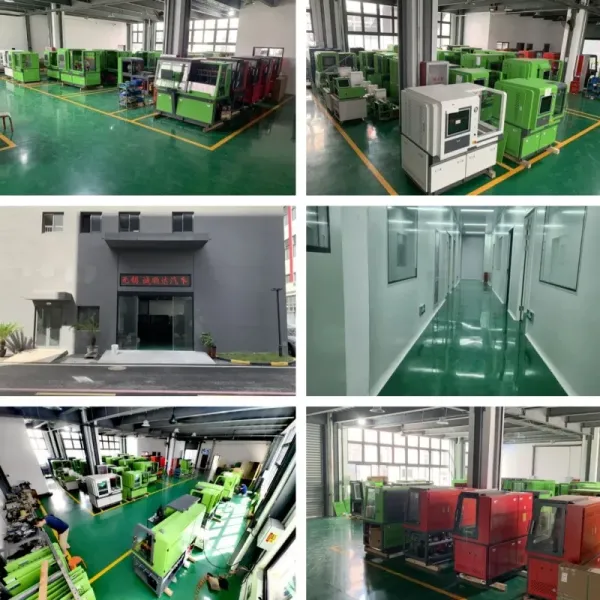

Product Gallery

Technical Parameters

Parameter	Specification
Model Number	326A
Output	7.5KW
Speed	0 - 4000 RPM
Power	3-Phase 4-Wire 380V 50/60HZ
Nozzle Sensor	Gear Flow Sensor: 2 pcs
Rail Pressure	0-2700 Bar
Diesel Tank Volume	40L Filtration Accuracy: 3 µm
Fuel Temperature	40±2°C
Machine Dimension	12809901700 mm
Packing Dimension	158011001900 mm
Net Weight	500KG
Gross Weight	530KG
