JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

Brand Name : JZHY

Model Number : JZ-518

Certification : CE / ISO

Place of Origin : CHINA

MOQ : 1 Set

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100 sets per Month

Delivery Time : 7-10 Days

Packaging Details : Wood Density Board

Support : OEM/ODM

Contact Now

JZ-518 Multifunctional Function Common Rail Pump EUI EUP Injector Code BPI Test Bench



Standard Functions:



  • Test EUI & EUP
  • Test common rail pump
  • Test piezo injectors
  • Test high pressure injector
  • Response time test (BIP)
  • IQA code generation
  • Resistance and inductance testing
  • Real-time display of oil injection/return curve



Optional Functions:



  • Test the 4-pin injector
  • injector QR code
  • HP5 HP7 pump
  • Test X15, Q60 HPI
  • VDO-I IC coding
  • C2i, C3i coding
  • piezo IMA, ISA coding
  • injector correction code







Technical Parameters
   Model Number    JZ-518
   Color    Green/Red
   Frequency    50Hz / 60Hz
   Motor Height    125 MM
   Main Output    15 KW
   Speed    0～3500 RPM
   Speed Control Mode    Frequency Converter
   Diesel Motor Output    5.5 KW
   Diesel Oil Supply Output    0.75 KW
   Oil Tank Cooling Output    105 Watts
   Power    380V AC 3-Phase-4-Wire
   Cooling Systerm    Air Conditioning (1P)
   Diesel Tank Volume    40L Filtration Accuracy:3μm
   Fuel Temperature    40℃ ± 2℃
   Heating System    Air Conditioning
   Nozzel / Pump Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008～2L /min
   Control Return Voltage    DC 12V / DC 24V
   Max Common Rail Pressure    0-2700 Bar
   Rail Pressure Testing Accuracy    ±5 Bar
   Diesel Oil Supply Pressure    0～2.5 Mpa
   Injection Frequency    400-6000 n/M
   Pulse Width    100-3000 μs
   Machine Dimension    1880*1020*1750MM
   Packing Dimension    1980*1160*1930MM
   Net Weight    609KG
   Gross Weight    684KG

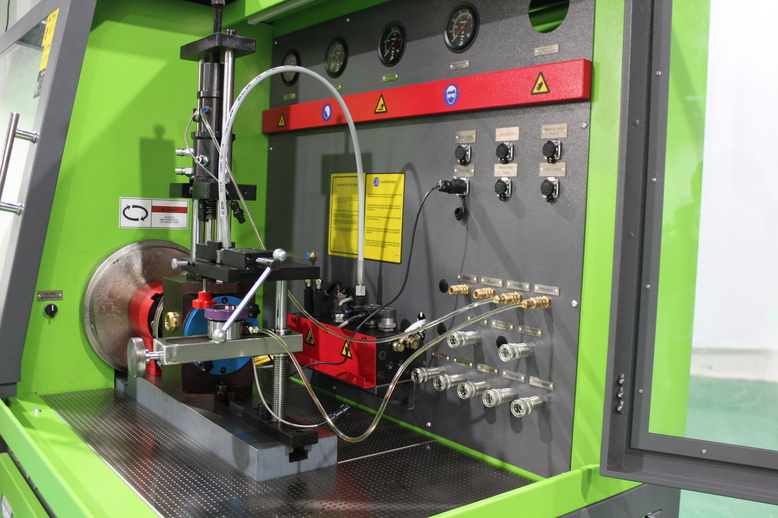

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test BenchJZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench

JZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test BenchJZ-518 Multifunctional Common Rail Pump EUI EUP Injector Code BPI Test Bench
