Name: JZ726 Diesel EUI EUP HEUI HPI injector Diagnostic Test Bench
Brand: JZHY
Price: 1 USD

Brand Name : JZHY

Model Number : JZ-726

Certification : CE / ISO

Place of Origin : CHINA

MOQ : 1 Set

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100 sets per Month

Delivery Time : 7-10 Days

Packaging Details : Wood Density Board

Support : OEM/ODM

Contact Now

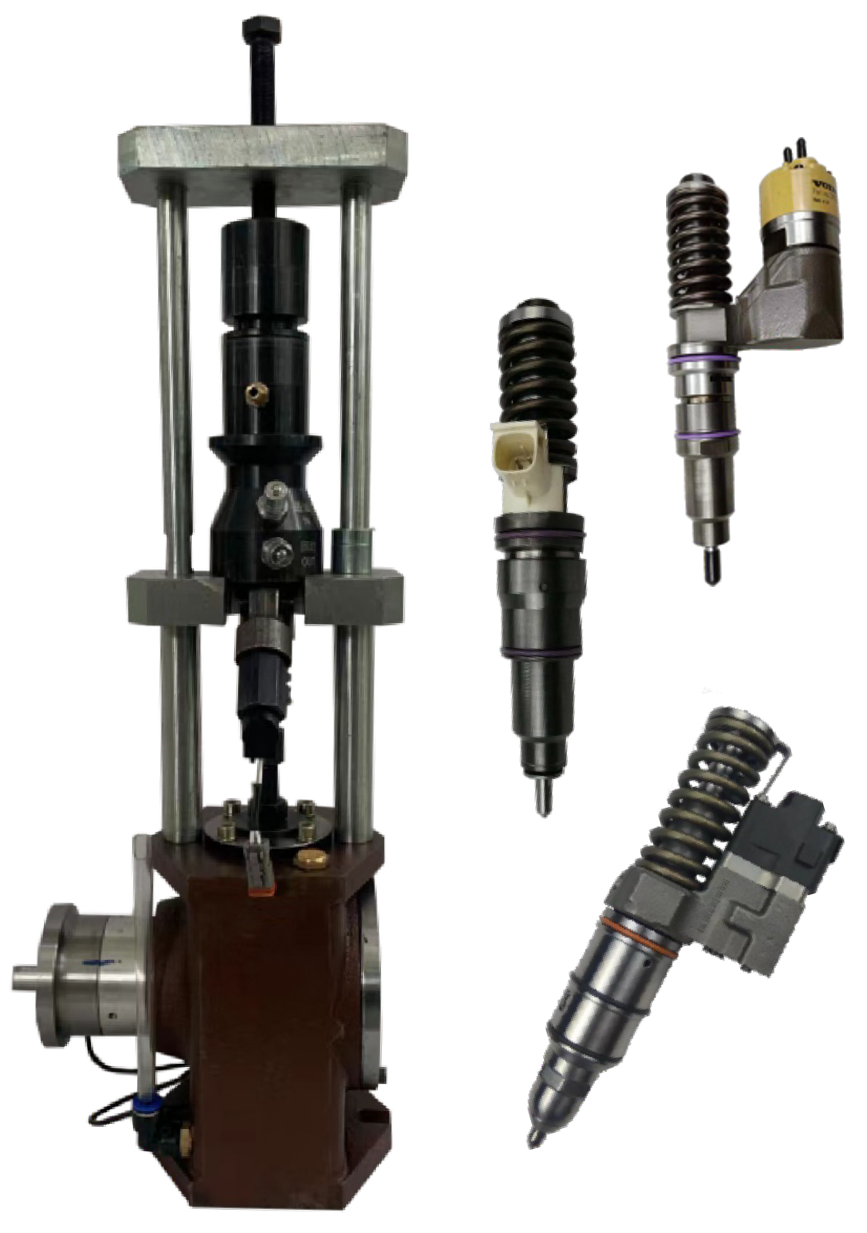

JZ-726 EUI EUP HEUI Machine Pump Injector HPI Test Bench

Standard Functions:

Optional Functions:

Assistant Functions:

Technical Parameters
Output				7.5KW
Speed Control Mode				Frequency Converter
Power				3-Phase 4-Wire 380V 50/60HZ
Cooling System				Air Cooling (Air Conditioning Optional)
Nozzle Sensor				Gear Flow Sensor
Rail Pressure				0-2700 Bar
Rail Pressure Precision				±5 Bar
Oil High Pressure				0-315 Bar
Diesel Low Pressure				0-25 Bar (manual)
Diesel Tank Volume				20L Filtration Accuracy: 3 µm
Oil Tank Volume				20L Filtration Accuracy: 5 µm
Pulse Width				100-3000 µs
Fuel Temperature				40±2°C
Machine Dimension				190010501830 mm
Packing Dimension				200012001950 mm
Net Weight				920KG
Gross Weight				1030KG

JZ-726 Diesel EUI EUP HEUI HPI injector Diagnostic Test Bench
